A customised, and accessible, Firebase login view controller. Part 2 - Social Sign-In

Don't forget, all the code is available here

At this point we have a UI. It localises nicely, its buttons are branded in terms of icons and colours and it supports dynamic text. Lets move on to making it responsive.

There are a number of steps needed to get social media sign-in set up in your app. You must:

  1. Configure Firebase
  2. Enable the social media platform as a sign-in option in the Firebase console
  3. Configure the app according to each Social Media provider's needs
  4. Add the Social Media provider's URL scheme as a support URL in your Info.plist

Configure Firebase

Just import Firebase in AppDelegate.swift and add Firebase.configure() on launch.

Ha, just kidding, don't do that, it's horrible. Do this instead

Enable social media sign-in

On the Firebase console, in the Auth section under Sign-in method, enable your required sign-in provider.


Configure the app

This step is out of scope for this article. Each of Google, Twitter, Facebook etc require you to perform different steps before allowing your app to authenticate to their platforms.

Follow the relevant links to setting up each Social Media authentication here

Add the URL scheme

Your Firebase config file, GoogleService-Info.plist, contains a number of keys and identifiers. The REVERSED_CLIENT_ID identifier contains the URL scheme for Google Sign-in.

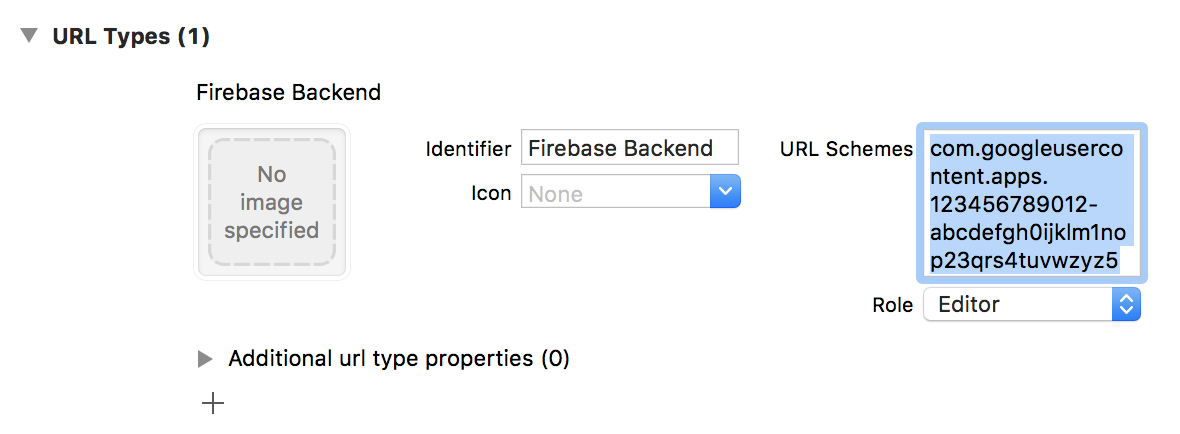

Copy and paste the URL scheme into the URL Types in the Info section of your target app in your project. You will need to add a URL scheme for each of the Social Media providers you support. Details are in the Social Media authentication chapters here


Logging in on Social Media

That's all the preliminary steps out of the way, let's try to sign in. There are two phases to social media sign-in:

  1. You must first sign-in to the social media provider in order to get an authentication credential specific to that social media platform
  2. You log into Firebase with that credential and get back your Firebase user, represented by a FIRUser instance.

Social media sign-in appears on your app as a web view presented modally. You get this sign-in screen by calling signIn(withDefaultValue:presenting:completion:) with your concrete FUIAuthProvider instance.

Once you have your credential you authenticate yourself in Firebase calling signInAndRetrieveData(with:completion:) on an instance of the Auth class. You can use a default instance by calling Auth.auth() and the completion is an AuthDataResultCallback, which is a typealias for a closure of type (AuthDataResult?, Error?) -> Void. AuthDataResult is a class that gives your the logged in user plus some other stuff.

Now we can pass the username in a Result to the view controller or coordinator that instantiated the login view controller and let it decide the next steps.

In our FirebaseLoginViewController we can define a login method for our FirebaseLoginButtons and add it as a target of the button for a tap event.

private extension FirebaseLoginViewController {
  func login(_ sender: FirebaseLoginButton) {
    // 1. Here we access the button's FUIAuthProvider
    guard let authProvider = sender.provider else {
    login(with: authProvider)
  func login(with authProvider: FUIAuthProvider) {
    // 2. Social media sign-in to retrieve the credential, with the
    // login view controller as the presenting view controller for the
    // web view modal
    authProvider.signIn(withDefaultValue: nil, presenting: self) { [unowned self] (credential, providerError, callback) in
      guard let credential = credential else {
        callback?(nil, providerError)
      // 3. Firebase authentication with the credential
      Auth.auth().signInAndRetrieveData(with: credential) { (result, authError) in
        guard let result = result else {
          callback?(nil, authError)
        callback?(result.user, nil)
        self.onLogin(.success(result.user.displayName ?? "Stranger"))
  func loginButton(for loginType: FirebaseLoginType) -> FirebaseLoginButton {
    let button = FirebaseLoginButton(with: FirebaseLoginButtonViewModel(provider: loginType.authProvider))
    button.addTarget(self, action: #selector(login(_ :)), for: .touchUpInside)
    // ...
    return button

To get part 1. to work we need to add a property to our FirebaseLoginButton to access the FUIAuthProvider

extension FirebaseLoginButton {
  var provider: FUIAuthProvider? {
    return viewModel.provider

Putting this all together, and implementing a suitable onLogin callback when launching my login screen, I can now open my login screen, choose Google sign-in, walk through the steps presented to get my Google credentials, login to Firebase with that credential and dismiss the login screen.

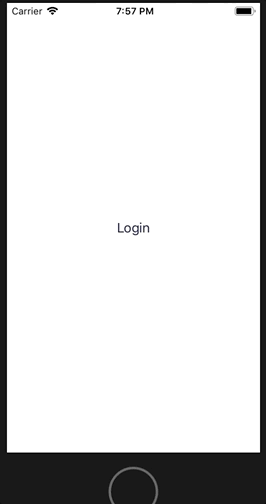

In my onLogin callbaclk I chose to display a welcome message using the returned user name. Here's the final result


Advanced bit I wish I didn't have to tell you about

But wait, what was that activity spinner doing in the UI? I didn't tell you I was going to do it.

Correct. But that's because I didn't do it. When you log in with either Google or Facebook sign-in, the Firebase SDK automatically puts an activity indicator onscreen.

The goal of this topic is go create our own UI, which should be something we control 100% ourselves. By displaying this spinner without giving us a way to avoid it, Firebase is still influencing our UI.

And the code to display the activity indicator is buried deep in the SDK. Ok, you could go in and remove the line, but then you'll have to fork the Firebase SDK and keep it up to date and it's a whole big thing. Not interested.

The activity indicator appears because of a static method on FUIAuthBaseViewController, which you may remember is the standard UI we're trying to replace because it doesn't support dynamic type.

But FUIGoogleAuth, the Google FUIAuthProvider, always expects the presenting view controller to be a FUIAuthBaseViewController, and it calls the static method addActivityIndicator(_:) which returns a UIActivityIndicatorView that is added to the login screen.

So what can we do? I don't want that spinner there, and neither do you. Hang on to your hats, folks, we're going swizzling.

I'm going to create a simple method that returns nil instead of a UIActivityIndicatorView instance, and replace the FUIAuthBaseViewController.addActivityIndicator(_:) method with this dummy method. In Objective-C the calls to add a nil object to our view controller will just be silently ignored.

Oooooh, playing with the Objective-C runtime in Swift, how naughty.

func disableActivitySpinnerPresentation() {
    let method = class_getClassMethod(FUIAuthBaseViewController.self,
                                      #selector(FUIAuthBaseViewController.addActivityIndicator(_ :)))
  else {
  let emptyBlock: @convention(block) (UIView) -> UIActivityIndicatorView? = { _ in
    return nil
  method_setImplementation(method, imp_implementationWithBlock(emptyBlock))

Call the above method once to set up the swizzling, ideally wherever you called Firebase.configure

@convention(block) tells the compiler that emptyBlock is an Objective-C compatible block reference, which allows us to pass it to imp_implementationWithBlock. This is similar to using @objc to mark a function as being Objective-C compatible

Now our app will login, the addActivityIndicator(_:) method will be called and return a nil value, so nothing is displayed.


And we're done

In the next post I'll add email and password based login.
